Electricity Meter Usage over MQTT

Last week some guy came around and switched out our old meters for new ones. Not "smart" meters, just new dumb meters, which is fine as the current crop of "smart" meters don't seem to benefit the customer, rather just the company.

A couple years back we used to have a Currentcost device which I had hacked with an Arduino to put data on the network but I always had issues with phantom loads so the transmitter stopped working I never did anything about sorting it out.

Anyway, the new meters have a red LED impulse output that flashes 1600 times per kWh used. These are just about the perfect way to hack into your meter - no dangerous (and potentially illegal) connections required and super easy to do. It should also be very accurate since the meters are certified correct.

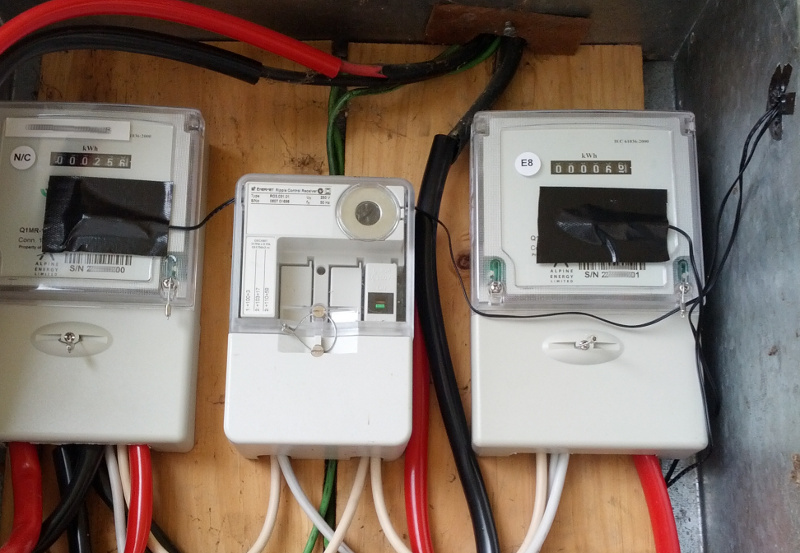

Here's a photo of the meter box showing the new meters and the sensors (with black tape over them). The two meters are on the outside and the ripple control in the middle. The Arduino and enclosure are just outside the photo to the right mounted on the wall, I thought it best to keep "odd looking things" out of way of the power company.

Electricity meter box with Arduino light sensors counting impulse flashes then broadcasting over MQTT

For the controller I used a Freetronics EtherTen which is an Arduino Uno compatible with built in Ethernet, these are great boards that we use a lot of here. The sensor is just a Photocell on the end of a small twin core wire connected back to a Prototyping Shield with a resistor.

The sensors are covered in black duct tape to keep out ambient light and connected up to the two interrupt digital input pins on the Arduino to make counting the pulses really easy (see the code below).

I already use MQTT (which is a simple network publish/subscribe system, great for machine to machine (M2M) communication) for some home automation around the house so publishing the electricity usage there made perfect sense. The EtherTen publishes the data on the network and any number of clients can subscribe to this and receive updates. Currently there's just a Python server which logs the data into a redis db for historic graphing. Here's an example graphs;

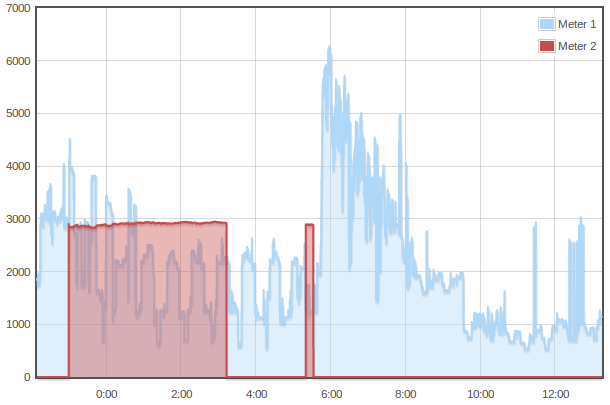

Example electricty usage

You can see that our house and its young family has a long way to go with saving energy. The blue graph is the standard meter and the red graph is the water heater circuit. This graph is actually higher than normal, it was a cold day but not cold enough to have the log burner on which heats up the entire house. You can see overnight the electric heaters in the children's bedrooms cycling on and off and at 6am the heat pump (air conditioner) ramping up to heat up the living area.

Of course you could also add any other network device and have it subscribe to the electricity usage MQTT topic. Perhaps I'll build a little RGB LCD display and have it show the current usage with a colour that reflects how well (or badly) we're doing at saving energy.

Here's the code I've been playing around with, suitable for Arduino 1.0+ and the not quite latest Arduino MQTT client (there was an update released this weekend which I has a small API change - easy fix).

* By Hadley Rich
* Released under the MIT license.
* Some ideas taken from example code.

#include <stdio.h>
#include <SPI.h>
#include <Ethernet.h>
#include <PubSubClient.h>

byte mac[6] = { 0x90, 0xA2, 0xDA, 0x44, 0x34, 0x28 };
char macstr[18];

const int chan1_pin = 2;
const int chan2_pin = 3;
const float w_per_pulse = 0.625;
const unsigned long ms_per_hour = 3600000UL;

unsigned int chan1_count = 0;
unsigned int chan2_count = 0;
unsigned long report_time = 0;
unsigned long chan1_first_pulse = 0;
unsigned long chan1_last_pulse = 0;
volatile byte chan1_pulse = 0;
unsigned long chan2_first_pulse = 0;
unsigned long chan2_last_pulse = 0;
volatile byte chan2_pulse = 0;

PubSubClient client("", 1883, callback);

void callback(char* topic, byte* payload, unsigned int length) {

void chan1_isr() {
  chan1_pulse = 1;

void chan2_isr() {
  chan2_pulse = 1;

boolean connect_mqtt() {
  if (client.connect(macstr)) {
    char topic[35];
    snprintf(topic, 35, "house/node/%s/state", macstr);
    client.publish(topic, "start");
    return true;
  return false;

void setup() {
  pinMode(chan1_pin, INPUT);
  pinMode(chan2_pin, INPUT);
  attachInterrupt(0, chan1_isr, RISING);
  attachInterrupt(1, chan2_isr, RISING);
  snprintf(macstr, 18, "%02x:%02x:%02x:%02x:%02x:%02x",
    mac[0], mac[1], mac[2], mac[3], mac[4], mac[5]);
  Serial.print("DHCP (");
  if (Ethernet.begin(mac) == 0) {

void loop() {
  char topic[35];
  char value[6];
  static unsigned int chan1_watts;
  unsigned long chan1_delta; // Time since last pulse
  static unsigned int chan2_watts;
  unsigned long chan2_delta; // Time since last pulse

  if (!client.connected() && !connect_mqtt()) {

  if (millis() - chan1_last_pulse > 60000) {
    chan1_watts = 0;
  if (millis() - chan2_last_pulse > 60000) {
    chan2_watts = 0;

  if (millis() - report_time > 5000) {
    chan1_delta = chan1_last_pulse - chan1_first_pulse;
    if (chan1_delta && chan1_count) {
      chan1_watts = (chan1_count - 1) * w_per_pulse * ms_per_hour / chan1_delta;
      chan1_count = 0;
    chan2_delta = chan2_last_pulse - chan2_first_pulse;
    if (chan2_delta && chan2_count) {
      chan2_watts = (chan2_count - 1) * w_per_pulse * ms_per_hour / chan2_delta;
      chan2_count = 0;
    if (!(report_time == 0 && chan1_watts == 0 && chan2_watts == 0)) {
      snprintf(topic, 35, "house/power/meter/1/current");
      snprintf(value, 6, "%d", chan1_watts);
      client.publish(topic, value);
      snprintf(topic, 35, "house/power/meter/2/current");
      snprintf(value, 6, "%d", chan2_watts);
      client.publish(topic, value);
      Serial.print("Chan1 ");
      Serial.print("Chan2 ");
      report_time = millis();

  if (chan1_pulse == 1) {
    chan1_pulse = 0;

    chan1_last_pulse = millis();
    if (chan1_count == 1) { // was reset
      chan1_first_pulse = chan1_last_pulse;

    snprintf(topic, 35, "house/power/meter/1/usage");
    client.publish(topic, "0.625");
  if (chan2_pulse == 1) {
    chan2_pulse = 0;

    chan2_last_pulse = millis();
    if (chan2_count == 1) { // was reset
      chan2_first_pulse = chan2_last_pulse;

    snprintf(topic, 35, "house/power/meter/2/usage");
    dtostrf(w_per_pulse, 4, 1, value);
    client.publish(topic, "0.625");

  int dhcp_status = Ethernet.maintain();
    0: nothing happened
    1: renew failed
    2: renew success
    3: rebind fail
    4: rebind success
  if (dhcp_status) {
    long now = millis();
    Serial.println("DHCP Lease");

All that's left to do now is tidy up the Ethernet cable... Any questions or comments please feel free to leave a comment below.
